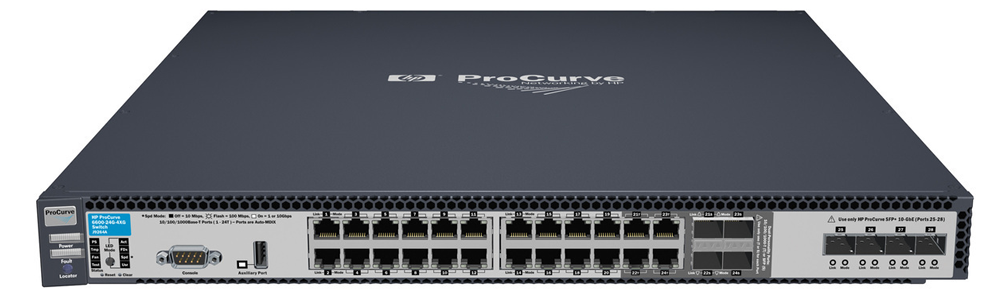

HP ProCurve E6600 24G 4XG Switch J9264A J9264-61101

View the refurbished HP ProCurve 6600-24G-4XG Switch J9264A J9264-61101 Quickspecs here

The HP 6600 Switch Series consists of advanced data center server edge switches. The 6600 Switch Series includes 10/100/1000BASE-T and 10GbE SFP+ 1U rackmount switches enhanced for server edge connectivity with front-to-back (reversible) airflow, redundant hot-swappable power, and redundant hot-swappable fans. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as quality of service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of connectivity interfaces and expanded buffering, the HP 6600 Switch Series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.

• Enhanced for data center server access layer
• Front-to-back, reversible airflow
• Redundant, hot-swappable power supplies and fans
• Consistent ProVision ASIC-based switch fabric
• Class of Service (CoS)sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• 64K MAC address scalability
• Auto-MDIX automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
• Jumbo frames on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services
• IPv6 host: enables switches to be managed in an IPv6 network
• Dual stack (IPv4 and IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols
• IPv6 routing: supports static and OSPFv3 routing protocols
• Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
• Static IP routing rovides manually configured routing for both IPv4 and IPv6 networks
• Routing Information Protocol (RIP) provides RIPv1 and RIPv2 routing
• OSPF (requires Premium License) provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
• BGP (requires Premium License): provides IPv4 Border Gateway routing protocol that is scalable, robust, and flexible
• RADIUS/TACACS+ eases switch management security administration by using a password authentication server
• IP multicast routing (requires Premium License) includes PIM Sparse and Dense modes to route IP multicast traffic
