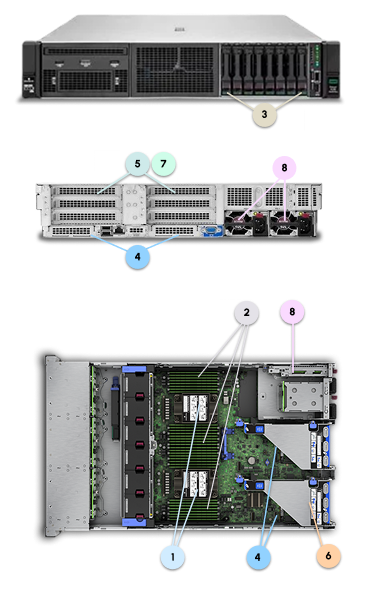

HPE DL380 Gen11 Rack Servers

Processor Qty 1 or 2 Processor Cores8-Core Min to 64-Core Max Processor ModelsProcessor GHz 1.7GHz to 3.9GHzProcessor ModelsIntel Xeon 4th and 5th Generation Scalable

Maximum Capacity8TB (32x 256GB)RAM Speeds4800 MT/s and 5600 MT/sTotal DIMM Slots32

Drive Bay Capacity24 Small Form Factor 2.5" / 12 Large Form Factor 3.5" / 2 M.2 NVMeDrive Types SAS Spinning Disk, SATA SSD, SAS SSD, NVMe SSDMax Capacity (2.5")SAS Spinning Disk (91.2TB), SAS SSD (583.3TB), SATA SSD (291.84TB), NVMe SSD (374.4TB)Max Capacity (3.5")SAS/SATA Spinning Disk (360TB), SAS SSD (11.5TB), SATA SSD (11.5TB)Max Capacity (EDSFF)NVMe (550.8TB)

Slot Qty1 or 2OCP Card Types 1Gbit, 10Gbit, 25Gbit, 100Gbit Ethernet Adapters / Hardware RAID Controllers

Full Height Slot Qty8x PCIe 5.0

OCP InternalHardware RAID 4GB-8GB Cache RAID0/1/5/6/10/50/60PCIe InternalHardware RAID 8GB Cache RAID0/1/5/6/10/50/60PCIe External Hardware RAID No Cache RAID0/1/5Software RAIDVROC No Cache RAID0/1/5/10Supported ProtocolsSATA 6Gb/s, SAS 12Gb/s & 24Gb/s, NVMe

Double-Width/Full-Length)3Single-Width/Full-Length8Single-Width/Three-Quarter-Length0

Power Suppy Qty1 or 2Power Supply Wattage800W AC, 1000W AC, 1600W AC, 1600W VDC, 1800-2200W AC
