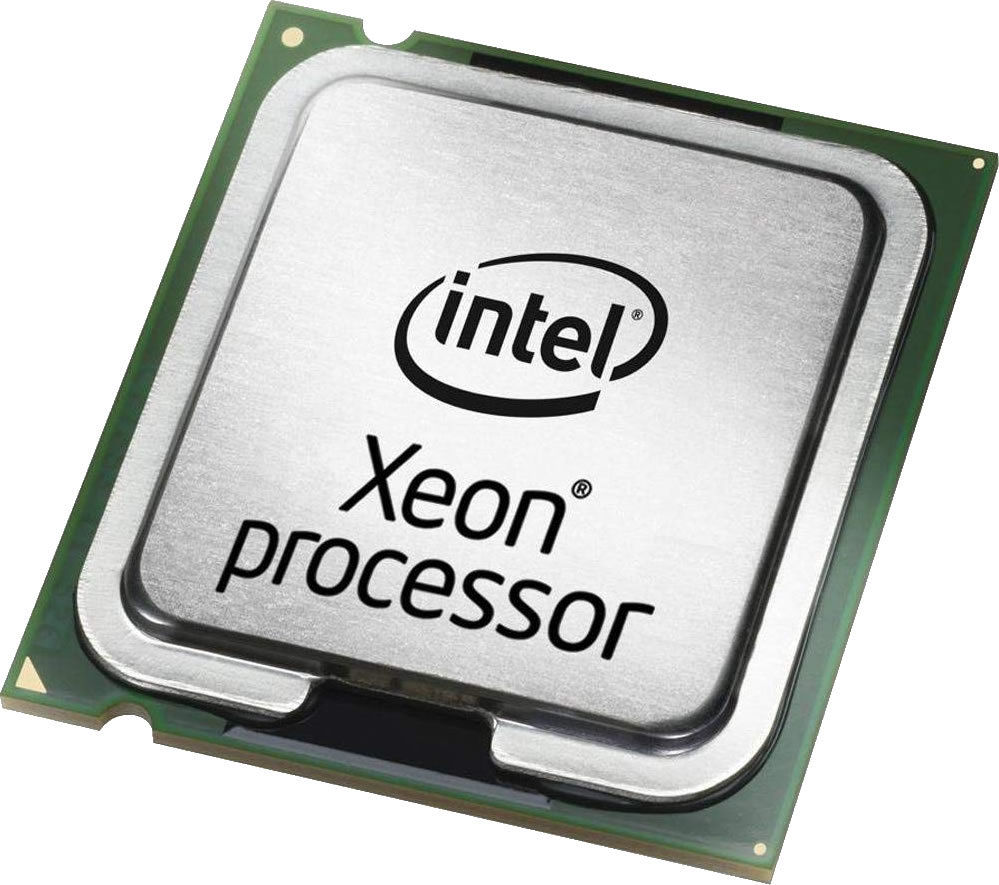

Intel Xeon E3-1220v5 (3.30Ghz/4-Cores/8MB/80W) Processor SR2LG

Essentials

Product Collection: Intel Xeon Processor E3 v5 Family
Code Name: Products formerly Skylake
Vertical Segment: Server
Processor Number: E3-1220V5
Status: Launched
Launch Date: Q4'15
Lithography: 14 nm

Performance

Number of Cores: 4
Number of Threads: 4
Processor Base Frequency: 3.00 GHz
Max Turbo Frequency: 3.50 GHz
Cache: 8 MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 80 W
VID Voltage Range: 0.55V-1.52V

Memory Specifications

Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max Number of Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
ECC Memory Supported: Yes

Processor Graphics

Graphics Output: N/A
4K Support: No
Max Resolution (HDMI 1.4): N/A
Max Resolution (DP): N/A
Max Resolution (eDP - Integrated Flat Panel): N/A
Max Resolution (VGA): N/A
DirectX Support: N/A
OpenGL Support: N/A
Intel Quick Sync Video: No
Intel InTru 3D Technology: No
Intel Clear Video HD Technology: No
Intel Clear Video Technology: No
Number of Displays Supported: 0

Expansion Options

Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: 1x16, 2x8, 1x8+2x4
Max Number of PCI Express Lanes: 16

Package Specifications

Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Package Size: 37.5mm x 37.5mm
Low Halogen Options Available: See MDDS

Advanced Technologies

Intel Turbo Boost Technology: 2.0
Intel vPro Platform Eligibility: Yes
Intel Hyper-Threading Technology: No
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes

Security & Reliability

Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel Boot Guard: Yes
