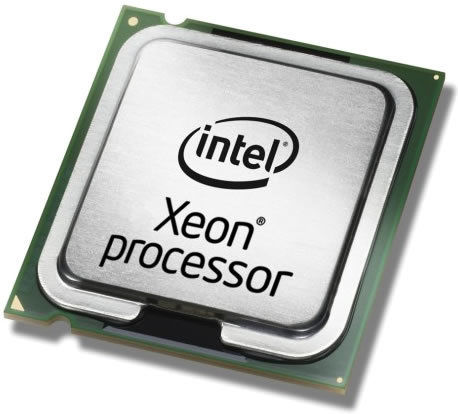

Intel Xeon E5-2407 (2.20Ghz/4-Cores/10MB/80W) Processor Kit - SR0LR

Essentials

Product CollectionIntel® Xeon® Processor E5 Family
Code NameProducts formerly Sandy Bridge EN
Vertical SegmentServer
Processor NumberE5-2407
StatusDiscontinued
Launch DateQ2'12
Expected DiscontinuanceQ2'15
Lithography32 nm

Performance

# of Cores4
# of Threads4
Processor Base Frequency2.20 GHz
Cache10 MB SmartCache
Bus Speed6.4 GT/s QPI
# of QPI Links1
TDP80 W
VID Voltage Range0.6V-1.35V

Memory Specifications

Max Memory Size (dependent on memory type)384 GB
Memory TypesDDR3 800/1066
Max # of Memory Channels3
Max Memory Bandwidth25 GB/s
ECC Memory Supported ‡Yes

Expansion Options

Scalability2S Only
PCI Express Revision3.0
Max # of PCI Express Lanes24

Package Specifications

Sockets SupportedFCLGA1356
Max CPU Configuration2
Package Size45mm x 42.5mm
Low Halogen Options AvailableSee MDDS

Advanced Technologies

Intel® Turbo Boost Technology ‡No
Intel® Hyper-Threading Technology ‡No
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® AVX
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel® Identity Protection Technology ‡No

Security & Reliability

Intel® AES New InstructionsYes
Intel® Trusted Execution Technology ‡Yes
Execute Disable Bit ‡Yes
