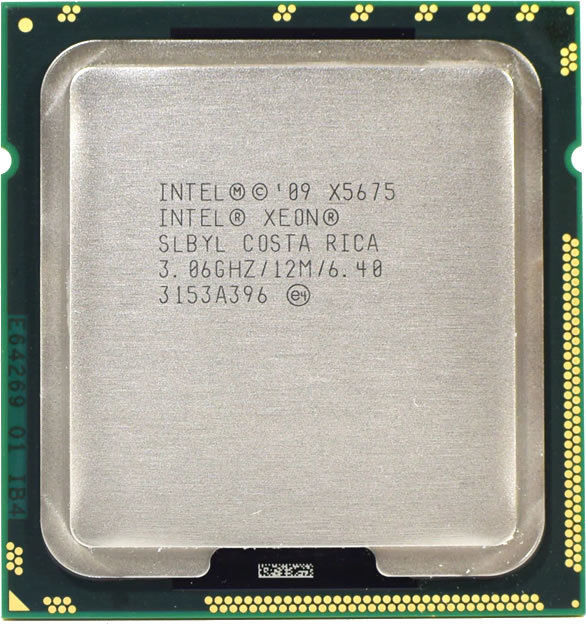

Intel Xeon X5675 (3.06GHz/6-core/12MB/95W) Processor SLBYL

Essentials

Product Collection: Legacy Intel Xeon Processors
Code Name: Products formerly Westmere EP
Vertical Segment: Server
Processor Number: X5675
Status: Discontinued
Launch Date: Q1'11
Lithography: 32 nm

Performance

Number of Cores: 6
Number of Threads: 12
Processor Base Frequency: 3.06 GHz
Max Turbo Frequency: 3.46 GHz
Cache: 12 MB SmartCache
Bus Speed: 6.4 GT/s QPI
Number of QPI Links: 2
TDP: 95 W
VID Voltage Range: 0.750V-1.350V

Memory Specifications

Max Memory Size (dependent on memory type): 288 GB
Memory Types: DDR3 800/1066/1333
Max Number of Memory Channels: 3
Max Memory Bandwidth: 32 GB/s
Physical Address Extensions: 40-bit
ECC Memory Supported: Yes

Package Specifications

Sockets Supported: FCLGA1366
Max CPU Configuration: 2
TCASE: 81.3°C
Package Size: 42.5mm X 45mm
Low Halogen Options Available: See MDDS

Advanced Technologies

Intel Turbo Boost Technology: 1.0
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Demand Based Switching: Yes
Thermal Monitoring Technologies: No

Security & Reliability

Intel AES New Instructions: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
