HPE Primera A630 SAN Storage Arrays

About HPE Alletra A6030 Storage

The HPE Alletra 6030 is a business-critical all-flash array from HPE's Nimble-derived Alletra 6000 series, designed for organisations where storage performance and availability aren't negotiable. It runs an all-NVMe architecture with up to 24 drive slots, scales non-disruptively via expansion shelves, and ships with 6x9s availability as standard - no special contract needed. HPE's predictive analytics monitors storage and VM health continuously, flagging issues before they become outages. Opting for a refurbished HPE Alletra 6030 delivers all of that at a significantly lower cost of entry.

Description

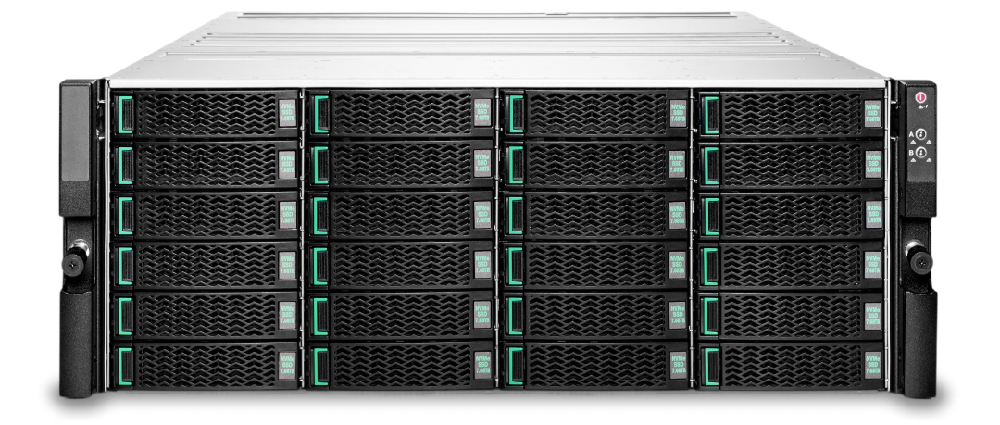

HPE Alletra 6000

(Front)

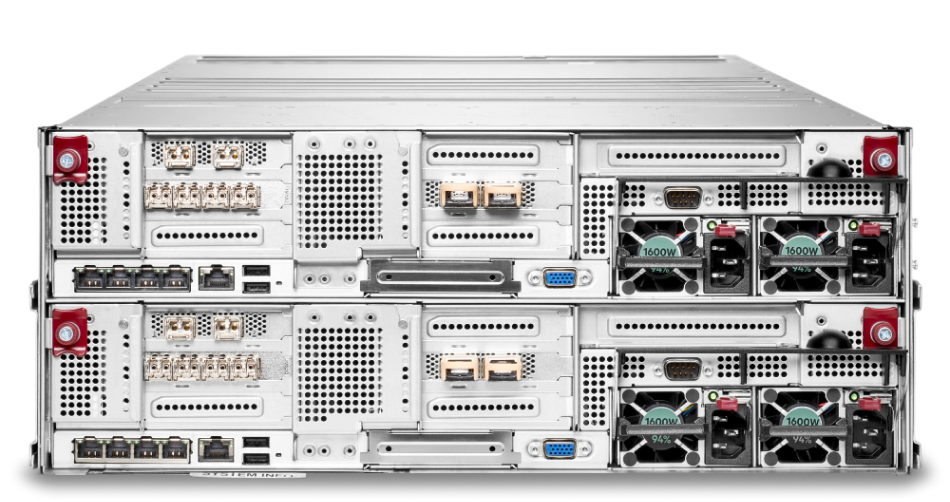

HPE Alletra 6000

(Rear)

What's New

HPE Alletra 6030 delivers up to 3x faster performance than previous HPE Nimble Storage all-flash arrays.
Triple parity RAID protection as standard, providing an additional layer of resilience over traditional dual-parity configurations.
Pinpoint performance bottlenecks and underutilised virtual resources across storage and VMs from a single interface, no cross-platform guesswork.
Automated L1 and L2 support through HPE's predictive support engine, reducing reliance on manual intervention for routine issue resolution.

Standard Features

HPE Alletra Storage 6000 Models
AF-Series Arrays	6010	6030	6050	6070	6090	Scale-out 4X 6090
Raw capacity (TB)^{2, 5}	23-92	23-184	23-575	23-1,104	23-1,104	92-4,416
Usable capacity (TB)^{2, 8}	12-66	12-135	12–422	12-820	12-820	48-3,260
Effective capacity (TB)^{2, 3}	60-330	60-675	60-2,110	60-4,100	60-4,100	240-16,400
Max. # of expansion shelves	1	2	2	2	2	8
RAID level support	Triple+ Parity
Onboard Mgmt 1GBase-T ports per array^4,6	8	8	8	8	8	32
Optional iSCSI 10GBase-T ports per array⁶	8-24	8-48	8-48	8-48	8-48	8-192
Optional iSCSI 10GbE ports per array⁶	8-24	8-48	8-48	8-48	8-48	8-192
Optional iSCSI 25GbE ports per array⁶	4-12	4-24	4-24	4-24	4-24	4-96
Optional iSCSI 100GbE ports per array⁶	4	4, 8	4, 8	4, 8	4, 8	4-48
Optional 2P 32Gb FC (8/16Gb) ports per array^6,9	4-12	4-24	4-24	4-24	4-24	4-96
Optional 4P 32Gb FC (8/16Gb) ports per array^6,9	8	8, 16	8, 16	8, 16	8, 16	8-64
