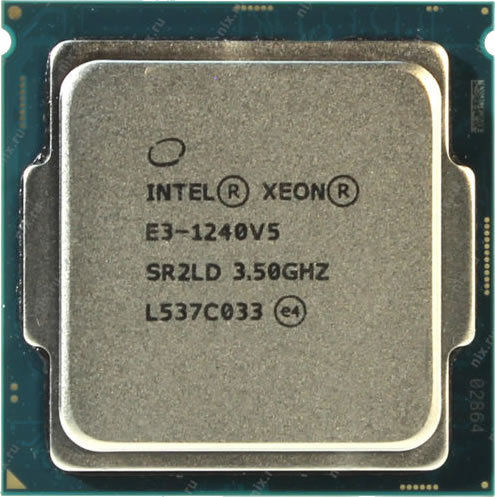

Intel Xeon E3-1240v5 (3.50Ghz/4-Cores/8MB/80W) Processor SR2LD

Essentials

Product CollectionIntel® Xeon® Processor E3 v5 Family
Code NameProducts formerly Skylake
Vertical SegmentServer
Processor NumberE3-1240V5
StatusLaunched
Launch DateQ4'15
Lithography14 nm

Performance

# of Cores4
# of Threads8
Processor Base Frequency3.50 GHz
Max Turbo Frequency3.90 GHz
Cache8 MB SmartCache
Bus Speed8 GT/s DMI3
TDP80 W
VID Voltage Range0.55V-1.52V

Memory Specifications

Max Memory Size (dependent on memory type)64 GB
Memory TypesDDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels2
Max Memory Bandwidth34.1 GB/s
ECC Memory Supported ‡Yes

Processor Graphics

Graphics OutputN/A
4K SupportNo
Max Resolution (HDMI 1.4)‡N/A
Max Resolution (DP)‡N/A
Max Resolution (eDP - Integrated Flat Panel)‡N/A
Max Resolution (VGA)‡N/A
DirectX* SupportN/A
OpenGL* SupportN/A
Intel® Quick Sync VideoNo
Intel® InTru™ 3D TechnologyNo
Intel® Clear Video HD TechnologyNo
Intel® Clear Video TechnologyNo
# of Displays Supported ‡0

Expansion Options

Scalability1S Only
PCI Express Revision3.0
PCI Express Configurations ‡1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes16
Package Specifications

Sockets SupportedFCLGA1151
Max CPU Configuration1
Package Size37.5mm x 37.5mm
Low Halogen Options AvailableSee MDDS

Advanced Technologies

Intel® Turbo Boost Technology ‡2.0
Intel® vPro™ Platform Eligibility ‡Yes
Intel® Hyper-Threading Technology ‡Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
Intel® TSX-NIYes
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes

Security & Reliability

Intel® AES New InstructionsYes
Secure KeyYes
Intel® Software Guard Extensions (Intel® SGX)Yes
Intel® Memory Protection Extensions (Intel® MPX)Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡Yes
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
